Complete solution: Eliminates microleaks and reveals all leak points at once in AC/R systems

The TAPA FUGAS K11® 2in1 is an innovative and definitive solution for combating microleaks and locating leak points in refrigeration and air conditioning (HVAC-R) systems. This product combines in a single application the action of the high-performance TAPA FUGAS K11® sealant with the REVELA FUGAS K11® fluorescent contrast, ensuring effective sealing and visual detection of all types and sizes of leaks using fluorescence under UV light. ensuring an effective seal and visual detection of all types and sizes of leaks using fluorescence under UV light.

Internationally certified, the TAPA FUGAS K11® 2in1 ensures system integrity and maximum reliability for the technician. Its formula, in addition to being stable and safe, is “universal” as it is compatible with all types of refrigerant fluids (HFC, HCFC, CFC, HFO), lubricating oils (mineral, POE, PAG, AB (alkyl-benzene) and all types and sizes of refrigeration and air conditioning equipment.

CERTIFIED PRODUCT!

TECHNICAL CHARACTERISTICS

  • Dual action: seals micro leaks and reveals all leak points with fluorescent contrast
  • Intense fluorescence under UV, or violet, light
  • Polymer-free: does not react with moisture or generate harmful residues
  • Compatible with all refrigerant gases (HFC, HCFC, CFC, HFO) and oils (POE, PAG, mineral, AB)
  • Safe for metals, plastics, rubbers and other internal components
  • Não inflamável, livre de solventes agressivos e ambientalmente seguro

IDEAL FOR

Automotive air conditioning (passenger and cargo)

Residential, commercial and industrial air conditioning systems (HVAC)

Cold rooms, chillers, VRF and split systems

Refrigeration equipment with hermetic, scroll and semi-hermetic compressors

Railway, maritime and aeronautical applications

BENEFITS TO THE OPERATION OF THE SYSTEM

  • Significantly reduces refrigerant gas loss
  • Prevents operational failures caused by loss of pressure
  • Reduces the frequency of recharges and corrective maintenance
  • Keeps the system clean, free from obstructions or contamination
  • Allows periodic inspections with UV flashlight without refueling

BENEFITS FOR THE INSTALLATION AND MAINTENANCE TECHNICIAN

  • Save time with simultaneous diagnosis and correction
  • Simple and quick application, without disassembly
  • Precise location of all leak points
  • Versatile use in automotive, residential, commercial and industrial systems
  • It remains active until the lubricating oil is changed.

METHODS OF
DISTRIBUTION AND APPLICATION

Conector CO K11 é vendido separadamente.

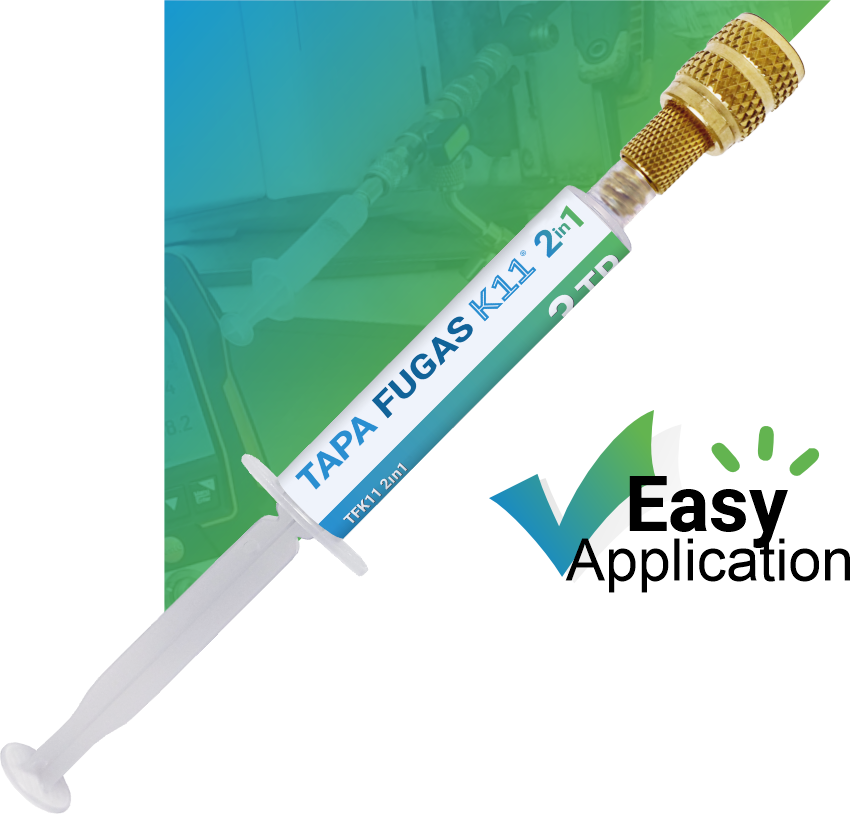

SYRINGE Format

  • Packaging: 10 ml syringe
  • Performance: For systems up to 36,000 Btu/h or 3 TR
  • For pressureless or vacuum systems
  • Multiple syringes can be applied in systems with more than 36,000 Btu/h or 3 TR
  • Applied to the low valve, with the aid of the SYRINGE X F1/4 SAE CONNECTOR WITH NON-RETURN VALVE (CO K11), following the instructions below.

Conector CO K11 é vendido separadamente.

How to Apply

1º) Connect the SYRINGE CONNECTOR to the system’s low service valve (it can be loaded, empty or under vacuum);

2º) Screw the SYRINGE onto the SYRINGE CONNECTOR (CO K11);

3º) Slowly apply the 10ml SYRINGE. For charged systems, apply with the equipment turned on to reduce pressure;

4º) Inspect with UV or VIOLET FLASHLIGHT in a darkened room;

5º) Fluorescence will mark all leak points including those that require specific repair actions due to their size being larger than the micro-holes that are eliminated by the sealing action;

6º) Complete the operation by disconnecting the SYRINGE / CONNECTOR. For vacuum systems, continue with the vacuum and fluid loading operation as defined by the system manufacturer.

NOTE: Medicinal type SYRINGE, luer-lock type connection defined by ISO 594 standard.

application diagram
